High quality Stainless Steel Hinge for 8 - 12mm glass door, suits shower door, office glass door...
■ Material: Stainless Steel SUS304
■ Finish: Chrome Polished Finish or Satin Finish
■ Glass Thickness: 8-12 mm thick glass door
■ Glass Fabrications: Cut-out required
■ Accessories: supplied with gaskets, fixing screws.
Door Opening: Dual action springs, opening both inwards and outwards (90° in and 90° out).
Closing Type: Self-closing from approximately 30 degree

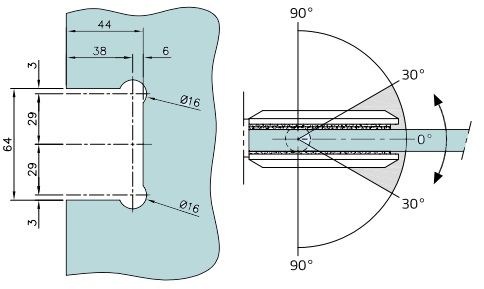

Glass Fabrication: glass cut-out required

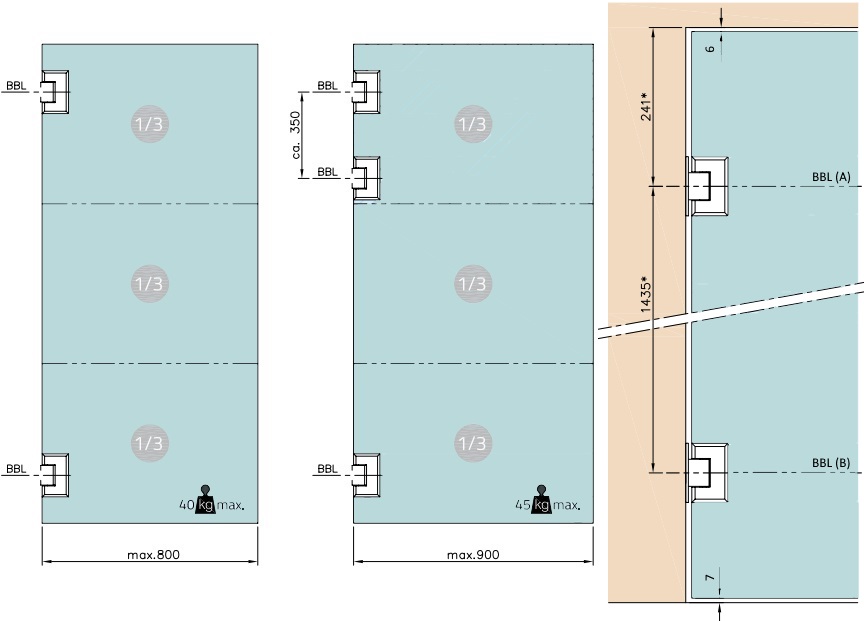

*Assembly Example: 8mm toughened glass without PVC seals

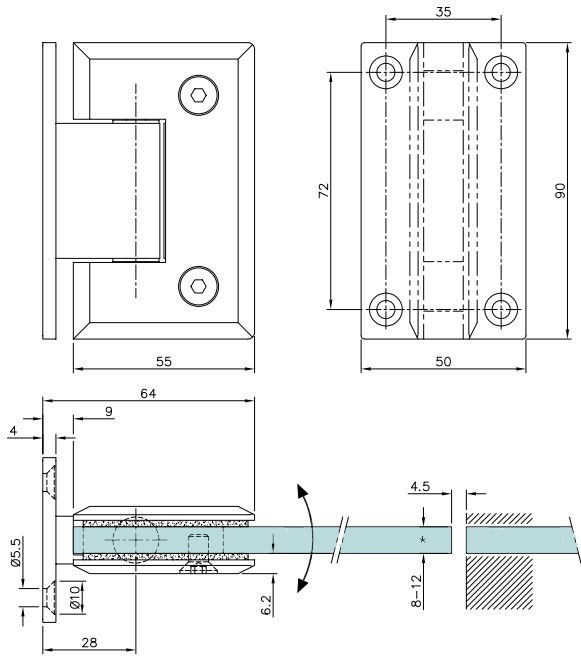

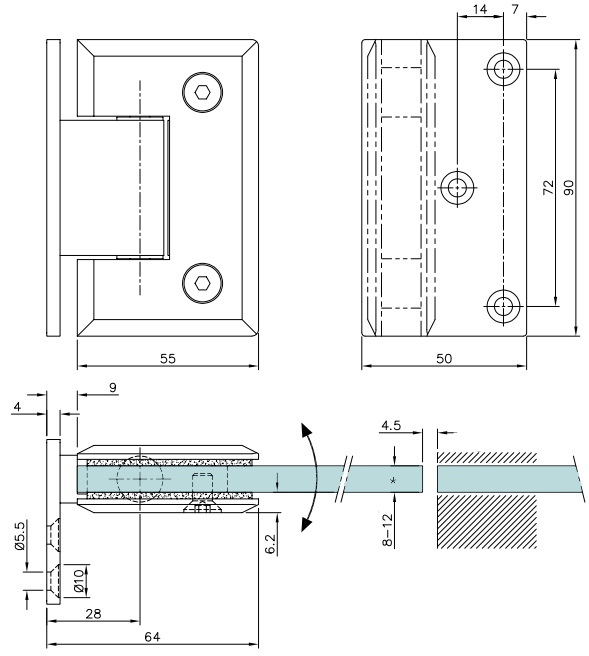

DRAWING NOT TO SCALE.
All specifications are for reference purposes only and are subject to change without prior notice.
Recommended Door Dimensions (according to *DIN 18268)
| Glass Door Height | Distance between Frame Rebate and BBL(A) | Distance between BBL(A) and BBL(B) |
| 1860 - 2110 mm | 241 + 1mm | 1435 mm ±0.5 mm |
| 2111 - 2235 mm | 241 + 1mm | 1560 mm ±0.5 mm |
| 2236 - 2360 mm | 241 + 1mm | 1685 mm ±0.5 mm |
Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.
