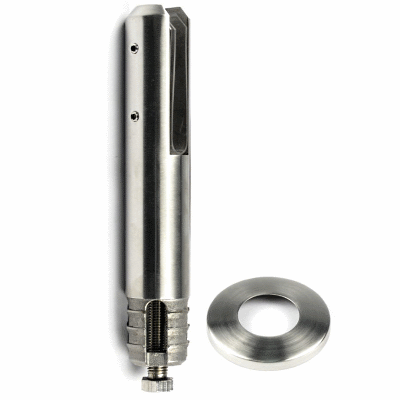

Core mounted Stainless Steel Floor Support for insertion in core-drilled holes in the ground (e.g. concrete floor).
No glass fabrication needed, thanks to the New Friction Clamping System: Glass panel is gripped by the PVC gasket and stainless steel pressure plate, pushed by two grub screws.
■ High quality, made from 316L (low carbon marine grade) stainless steel, suitable for indoor or outdoor application.
■ Finish available: Satin Brushed or Mirror Polished Finish.
■ Suitable for 10mm or 12mm thick glass panel.
■ Friction Clamping System: no hole drilling needed in glass
■ Bottom M16 x 70 bolt gives extra anchoring in footings, and makes it easier to adjust the height.
■ Cover Plate supplied to conceal the core hole and add the finishing touch to you installation.
■ Optional Stainless Steel Handrail available, sold separately
Please note: this item is not suitable for high wind areas.
