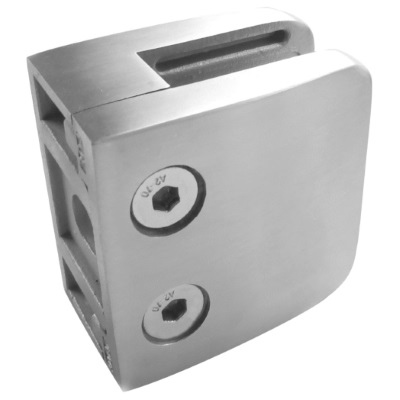

Large (52mm x 52mm) Square Stainless Steel Glass Clamp with Flat Base for 10 or 12mm glass, for fixing on flat surface (e.g. square posts, wall, floor). This square bracket is a perfect solution for glass balustrades, partitions, railings, windbreaks, displays and sneeze guards. Feature: firmly holds glass without drilling holes in glass panels*.
■ 304 grade Stainless Steel, suits Interior Use
■ Satin Finish
■ Suitable for 10 or 12mm glass
■ Duo-safety measure: removable safety pin + removable security plate can be used to prevent glass panel sliding down
■ Supplied complete with Safety Pin* x 1, Security Bottom Plate* x 1, Rubber Gasket x 2, Side Reinforced Screws x 2
Material: Stainless Steel SUS304*
Finish: Satin Finish
Glass Thickness: 10 or 12mm
Hole Drilling: Optional (required when using the Secure Pin**)
Supplied with: Safety Pin** x 1, Security Plate** x 1, Rubber Gasket x 2 and Side Reinforced Screws x 2, Screw Cover Cap x 2

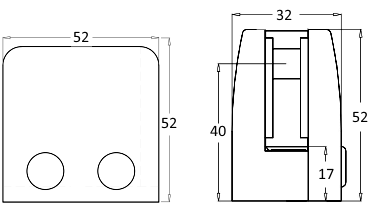

Dimensions for guide only. Component may vary slightly from the sizes shown.
* SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.
** For safety reason, we suggest the Safety Pin or Security Plate (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.
Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.

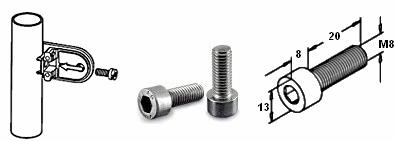

The type of the screw needed will vary greatly depending on the type of surface you're fixing to (e.g. stainless steel post, wall, floor...). The above Hexagon Socket Head Cap Screw (M8) is the standard screw to be used when fixing the glass clamps to steel posts. You might want to choose the correct fixing screw with similar dimension as this.

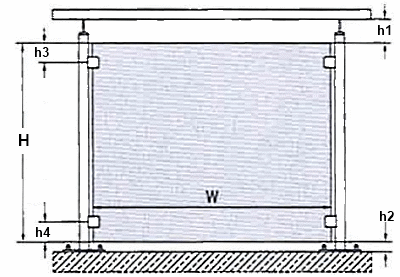

Below is a typical glass clamps application, to show the recommended positions for fixing the glass clamps. However we do have customers who prefer fixing the clamps on top and bottom (e.g having a larger glass panel).
| |
| Dimensions (mm) | Min. | Max. |
| W | Width of Glass | 500 | 1500* |
| H | Height of Glass | 800 | 1000* |
| h1 | Distance between handrail and top of the glass | 10 | 50 without edge protection, 100 with edge protection |
| h2 | Distance between floor and bottom of the glass | 10 | 50 without edge protection, 100 with edge protection |
| h3 | Glass edge above – axle upper glass clamp | 100 | 150 |
| h4 | Glass edge below – axle lower glass clamp | 100 | 150 |
*Max. size depends on glass type, glass thickness and wind factor (when using outdoor).
** For safety reason, we suggest the Secure Pin (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.
Please note: All specifications are for reference purposes only and are subject to change without prior notice.
