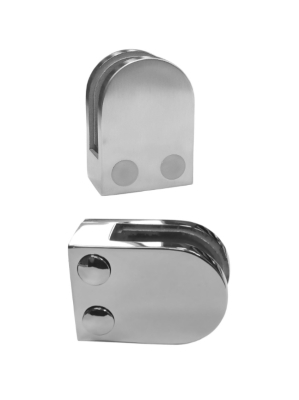

Large D-shaped Stainless Steel Glass Clamp with Flat Base to be fixed on a flat surface (e.g. square posts, wall, floor), a perfect solution for glass balustrades, partitions, railings, windbreaks, displays and sneeze guards. Feature: firmly holds glass without drilling holes in glass panels*.
■ 304 grade Stainless Steel, suits Interior Use; 316 grade Stainless Steel, suits Interior & Exterior Use
■ Chrome / Mirror Polished Finish or Satin Brushed Finish
■ Suitable for 6, 8, 10 or 12mm glass■ Supplied complete with Rubber Gasket x 2, Side Reinforced Screws x 2 and Cover Caps x 2
■ Drilling hole in glass is optional (hole is required when using the Secure Pin**)
Material: Stainless Steel SUS304* or SUS316*
Finish: Mirror Polished Finish or Satin Brushed Finish
Glass Thickness: 6 , 8, 10 or 12mm
Hole Drilling: Optional (drilling hole in glass is required when using the Secure Pin**)
* SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.
** For safety reason, we suggest the Secure Pin (sold separately) to be used when the glass panel is fixed to the outside of a staircase and overhanging.

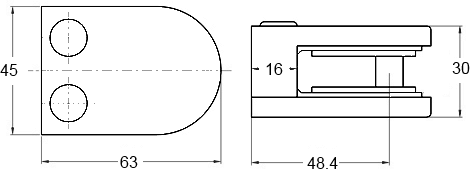

Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.
The type of the screw needed will vary greatly depending on the type of surface you're fixing to (e.g. stainless steel post, wall, floor...). The above Hexagon Socket Head Cap Screw (M8) is the standard screw to be used when fixing the glass clamps to steel posts. You might want to choose the correct fixing screw with similar dimension as this.
Below is a typical glass clamps application, to show the recommended positions for fixing the glass clamps. However we do have customers who prefer fixing the clamps on top and bottom (e.g having a larger glass panel).
| |
| Dimensions (mm) | Min. | Max. |
| W | Width of Glass | 500 | 1500* |
| H | Height of Glass | 800 | 1000* |
| h1 | Distance between handrail and top of the glass | 10 | 50 without edge protection, 100 with edge protection |
| h2 | Distance between floor and bottom of the glass | 10 | 50 without edge protection, 100 with edge protection |
| h3 | Glass edge above – axle upper glass clamp | 100 | 150 |
| h4 | Glass edge below – axle lower glass clamp | 100 | 150 |
*Max. size depends on glass type, glass thickness and wind factor (when using outdoor).
** For safety reason, we suggest the Secure Pin (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.
Please note: All specifications are for reference purposes only and are subject to change without prior notice.
