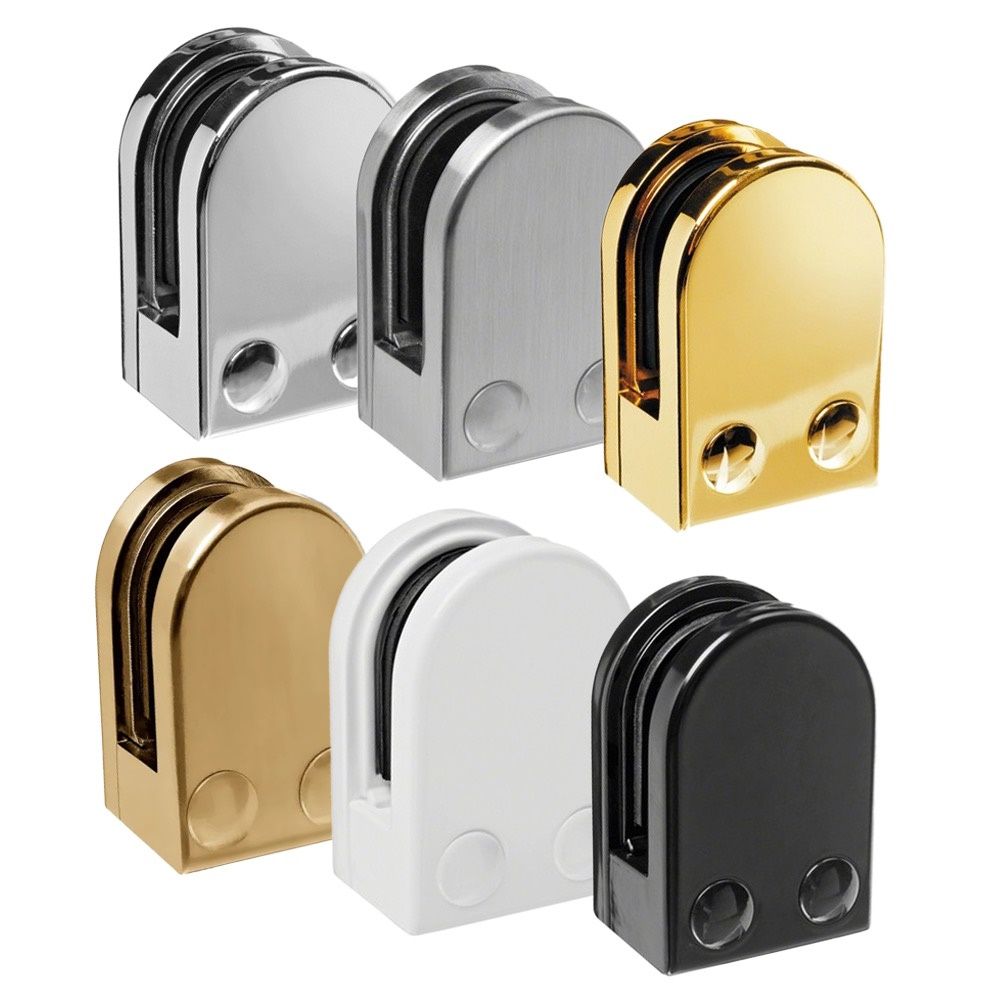

'D' Shaped Glass Clamp with Flat Base - Zintec

Material: Zinc Alloy

Finish: Satin Stainless, Chrome Polished, Brass, White, Black

Glass Thickness: 6 , 8 or 10mm

Hole Drilling: Optional (drilling hole in glass is required when using the Secure Pin**)

Supplied with: Rubber Gasket x 2 and Side Reinforced Screws x 2, Screw Cover Caps x 2


W=32 mm (except clamps in Matt Brass finish, which has width W=30mm)


* Zinc Alloy and SUS304 grade Stainless Steel suits internal use; With increased corrosion resistance, the SUS316 grade Stainless Steel can be used for both interior and exterior and is better suited for coastal or more heavily polluted environments.

** For safety reason, we suggest the Secure Pin (code: GCP-712, sold separately) to be used when the glass panel is fixed to the outside of a staircase and overhanging.

Please Note: All descriptions, specifications, diagrams, illustrations and dimensions given are approximate and intended for general guidance purposes only. They may be subject to change without prior notice. We make all reasonable efforts to ensure that the contents of this site are accurate and up-to-date, but can accept no responsibility for omissions, errors or subsequent changes.


The type of the screw needed will vary greatly depending on the type of surface you're fixing to (e.g. stainless steel post, wall, floor...). The above Hexagon Socket Head Cap Screw (M8) is the standard screw to be used when fixing the glass clamps to steel posts. You might want to choose the correct fixing screw with similar dimension as this.

Below is a typical glass clamps application, to show the recommended positions for fixing the glass clamps. However we do have customers who prefer  fixing the clamps on top and bottom (e.g having a larger glass panel).

Dimensions (mm)		Min.	Max.
W	Width of Glass	500	1500*
H	Height of Glass	800	1000*
h1	Distance between handrail and top of the glass	10	50 without edge protection, 100 with edge protection
h2	Distance between floor and bottom of the glass	10	50 without edge protection, 100 with edge protection
h3	Glass edge above – axle upper glass clamp	100	150
h4	Glass edge below – axle lower glass clamp	100	150

*Max. size depends on glass type, glass thickness and wind factor (when using outdoor).
** For safety reason, we suggest the Secure Pin (supplied with your clamps) to be used when the glass panel is fixed to the outside of a staircase and overhanging.

Please note: All specifications are for reference purposes only and are subject to change without prior notice.
