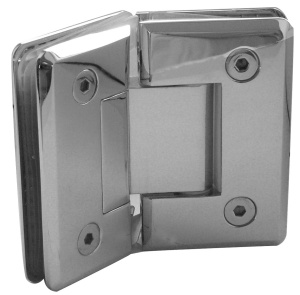

135° Glass-to-Glass Shower Door Hinge

£30.00
(Exc. 20% VAT)
£35.00
(£36.00 Inc. VAT)
In Stock, Express Delivery
+
Item Code
SH-330-135

Price shown is per hinge.

Overview

Glass-to-Glass Shower Door Hinges to mount a glass shower door to a fixed glass side panel that runs on a 135 degree angle.

Chrome Plated Finish

Fits 6-10 mm thick glass door

Glass Cut-out required*

Please Note: No glass cut-out dimensions supplied with this hinge. Please ask your glazier to help you to get an accurate measurement.

Specification

Material: Brass Construction with Precision Machined Stainless Steel Components

Finish: Chrome Plated

Glass Thickness: 6 -10mm

Door Opening: dual action springs, opening both inwards and outwards (90° in and 90° out).

Closing Type:  Self-closing from approximately 25-30 degrees

Glass Fabrication: glass cut-out required

Capacities:
2 hinges - max. door weight 40kg, max. door width 800mm;
3 hinges - max. door weight 55kg, max. door width 900mm

 Glass Weights Chart
 Glass Thickness  6mm  8mm  10mm  12mm
 Approx Weight  13.75kg/m2  18.30kg/m2  23.00kg/m2  27.50kg/m2

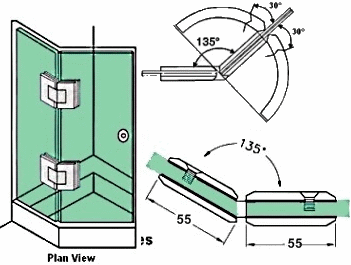

135-degree Shower Door Hinge


Please Note:
All specifications are for reference purposes only and are subject to change without prior notice.

Delivery

This item can be delivered to all addresses within the UK and Northern Ireland (unless otherwise stated) as well as Channel Islands, Isle of Man, Isles of Scilly, Orkney, Shetland and Western Scottish Islands. We may be able to deliver to the Republic of Ireland or other selected EU countries.

 Delivery Zone  Cost
(ex. VAT)
 Timescale
(Estimated Delivery Time)
 England, Wales & Scottish Mainland  from £7.50  1 - 2 Working Day
 Scottish Highland  from £9.50  2 - 5 Working Day (Certain remote areas may take longer)
 Northern Ireland  from £9.50  2 - 4 Working Days
 Isle of Wight  from £9.50  1-2 Working Days
 Other Area  Please Contact Us for delivery cost and timescale

Delivery Procedure:

Your parcels will require a signature upon delivery. Please kindly ensure that there will be someone to sign for the parcel at the delivery address. If you are out you will be carded, please read the instructions on the card. After the very first attempt, you also have the option to collect the parcels from your local depot of the couriers.

Timescales:

The cut-off time for next working day deliveries is 15:00 Monday to Friday (excluding Bank Holiday). Please Note: We rely on a third party (our couriers), therefore we are unable to guarantee delivery services. However, over 98.5% of deliveries are achieved on time.

Return:

14 DAYS MONEY BACK GUARANTEE*: we at Kerol Hardware want you to be delighted with your purchase. Our aim is your total 100% satisfaction before and after you order. In the unlikely event should you wish to return an item(s), we offer you gladly 14 calendar days from delivery date in which to decide to keep your ordered item(s) or return it/them. *Terms & Conditions apply, please click here for details.

More info >  Detailed Delivery Information can be found here. Detailed Return Policy can be found here.

Customer Reviews (0)

Be the first to Write a Review for this item!

Also Bought

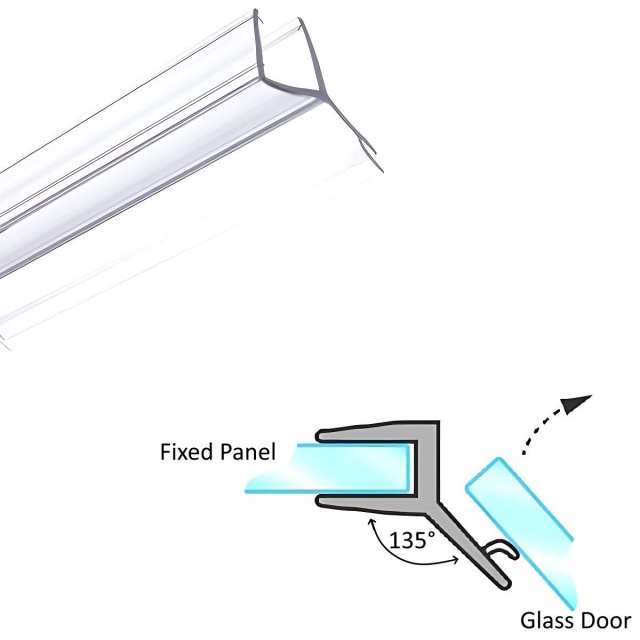

135° Glass to Glass Sealing Strip

Item Code: PS-135

Item Code: PS-0W

(1)

Item Code: PS-180

(1)

Item Code: GCH09
Aluminium, Undrilled, Length: 2410mm
Finishes: Polished, Brushed Nickel, Black, Satin Brass, White



(1)

Item Code: SDK-16

A wheel shaped Door Knob set for glass door in Satin or Polished Finish.

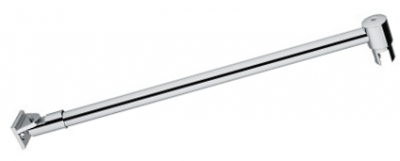

Wall Mounted Shower Stablise Bar with Adjustable Wall Bracket
